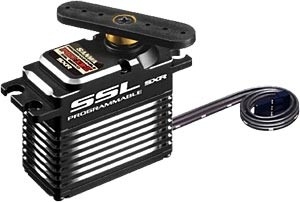

Servo Sanwa PGS-XB2 SXR

• Programmable Servo to be compatible with SSL & Telemetry at Launch
• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.

# Initial Setting on Setting Gear is necessary.

• FH5U: SXR(Sanwa Xtreme Response) Mode-Compatible
• SSL-Compatible Programmable Servo

# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

• PGS Setting Gear-Compatible
• Super Response (SSR) Mode-Compatible
• High Response (SHR) Mode-Compatible
• Li-Po 2 CELL-Compatible
• High Torque Type
• Brushless Motor
• Full Aluminum Case
• Full Metal Gear (Strengthening Gears)
• AL Heat Sink
• Black Harness

Setting Items:

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (Boost Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• MV-HOLD (Power Adjustment at whole area)
• MV-FRQ (Feeling Adjustment at whole area)
• MAX-PW (Max Duty Adjustment)
• PGS-Servo Explanation

# Setting Gear is necessary for ◎setting.

Specifications:
